Early 20th Century plastics timeline

Notable (abbreviated) steps along the way

Courtesy of the Plastics Historical Society

• 1284
• The Horners' Company was first recorded in 1284 in the City of London.

  The Horners Company was awarded a Royal Charter in 1638.

  Horn is deposited in laminated layers around a bony core separated by connective tissue. It grows throughout the life of the animal, whereas antler is shed each year.

  One method was to soak the horn in barrels of water for a specific time depending on the season. When removed from the barrels the horn was heated before splitting with a sharp knife, prising open with tongs and putting between hot metal plates in a press and applying pressure.

  Placing the warmed horn into moulds before applying pressure enabled the production of horn boxes, beakers and other items.

  By 1725 London was a major centre for moulding of horn.

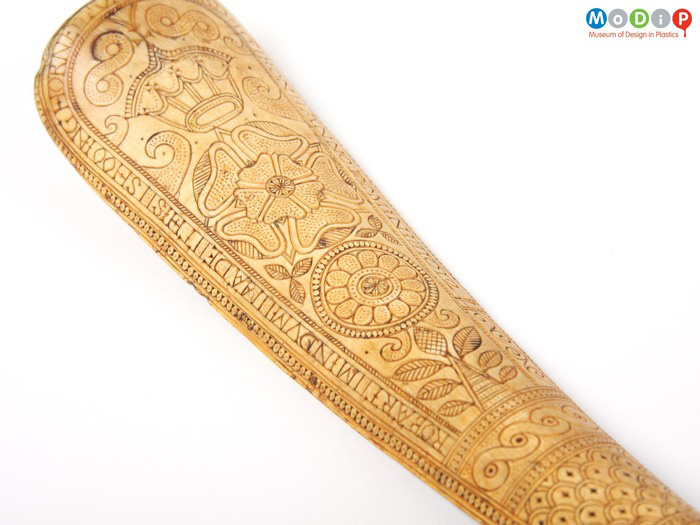

  Ricard Gibon Anno Domini 1612 in the Horner’s Company collection.

• 1656
• Gutta Percha (GP)

  1656

  John Tredescant introduced Gutta Percha from the Far Eastern Palaquium tree bark. This produced a hard material mouldable by heat to soften.

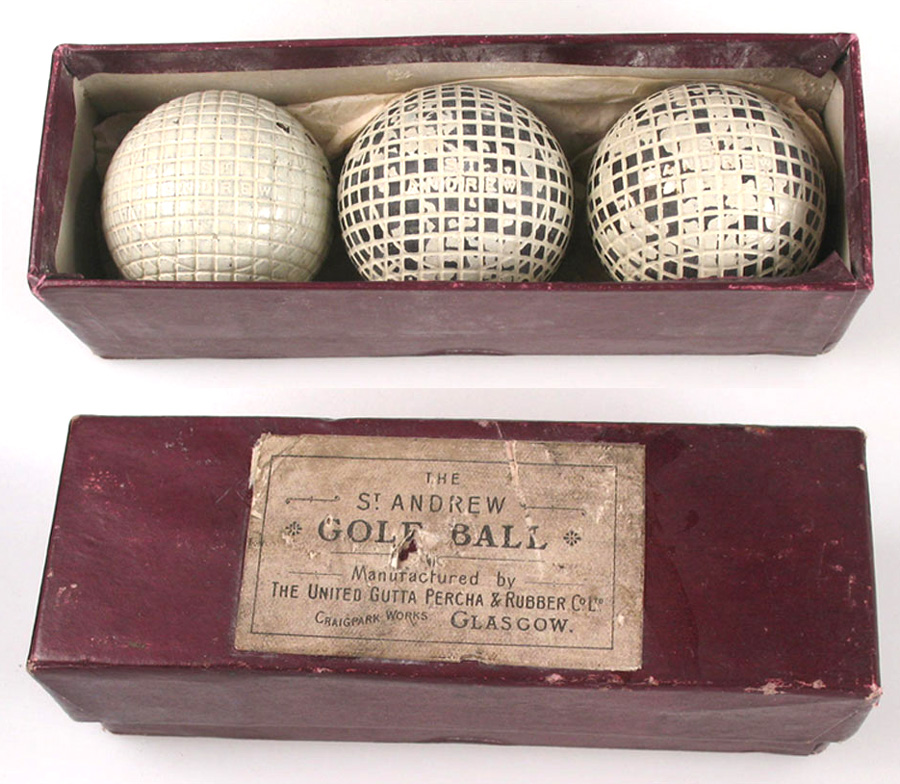

  Gutta Percha golf balls - Circa 1894 (Valued at $2,200)

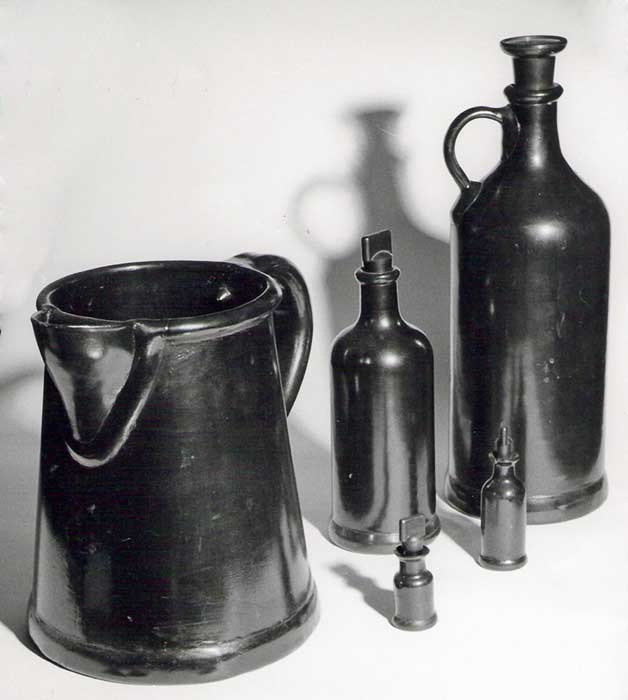

  Gutta Percha is thermoplastic, softening at elevated temperatures and returning to its solid form as it cools. This made it easy to mould into many decorative and functional objects, either by pressing the heated material into cold moulds, or by extrusion.



• Properties

  1846 - R. and J. Dick Ltd., founded in Glasgow, are still making belting from GP.

  Electronics
  Gutta-percha latex is biologically inert, resilient, and is a good electrical insulator with a high dielectric strength.

  By 1845, telegraph wires insulated with gutta-percha were being manufactured in the United Kingdom. It served as the insulating material for some of the earliest undersea telegraph cables, including the first transatlantic telegraph cable. Gutta-percha was particularly suitable for this purpose, as it was not attacked by marine plants or animals, a problem which had disabled previous undersea cables.

  Polyethylene's superior insulative property has displaced it.

  Dentistry
  The same bioinertness that made it suitable for marine cables also means it does not readily react within the human body. It is consequently used in a variety of surgical devices and for dental applications during root canal therapy.

  It is the predominant material used to 'obturate', or fill the empty space inside the root of a tooth after it has undergone endodontic therapy. Its physical and chemical properties, including but not limited to its inertness and biocompatibility, melting point, ductility, and malleability, afford it an important role in the field of endodontics.

• Other uses

  1851 - The Great Exhibition featured over 100 applications of GP.

  In the mid-19th century, gutta-percha was also used to make furniture, notably by the Gutta-Percha Company (established in 1847). Several of these highly ornate, revival-style pieces were shown at the 1851 Great Exhibition in Hyde Park, London. Molded furniture forms, emulating carved wood, were attacked by proponents of the design reform movement, who advocated truth to materials.

  The material was quickly adopted for numerous other applications. The "guttie" golf ball (which had a solid gutta-percha core) revolutionized the game. It was gradually replaced with superior (generally synthetic) materials, though a similar and cheaper natural material called balatá is often used in gutta-percha's place.

• 1820
• Rubber and derivatives

  1820-1943

  Thomas Hancock investigated intensively the moulding of masticated rubber and its many uses.

  1843
  Hancock refined and patented vulcanisation, establishing the UK rubber industry with products including boats, springs, hoses and bands. Vulcanite (hard rubber or ebonite) was an important innovation.

  1851

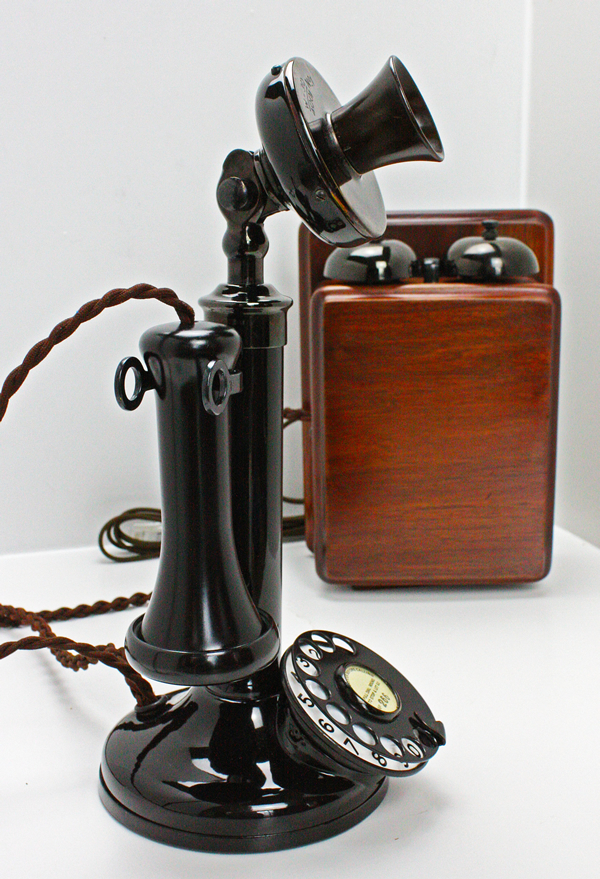

  Nelson Goodyear (USA) patented ebonite primary thermosetting material for demanding applications such as battery boxes, pumps, telephones, dental plates and fountain pens.



  1861
  Francis Shaw introduced the first screw extruder for rubber production.

  1900
  Synthesised methyl rubber poly(dimethylbutadiene)

  1915
  Synthetic methyl rubber production began in Leverkusen

  1930
  Nitrile rubbers (BUNA) produced in 1939 in the USA

  1931
  Du Pont (USA) produces polychloroprene rubber (Neoprene)

  1937
  Urethane rubbers introduced by R. M. Thomas ((USA)

  1939-40
  Goodrich develops polybutadiene and styrene-butadiene rubbers which made major contributions to World War II

  1943
  Silicone polymers were introduced by Dow Corning Corporation

• 1850's

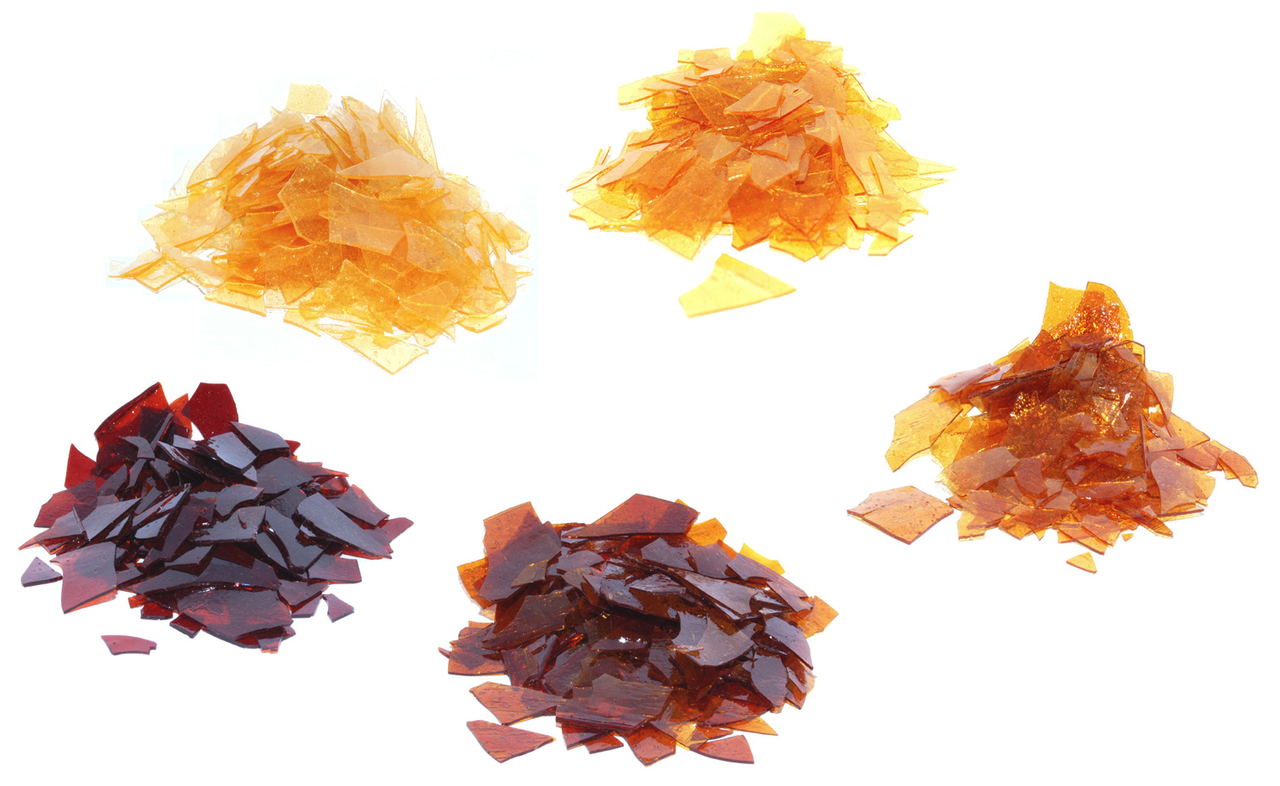

• Shellac

  1850's

  Shellac compounded with wood flour was patented in the USA (S. Peck, J. Critchlow) and moulded into union cases, picture frames, etc.

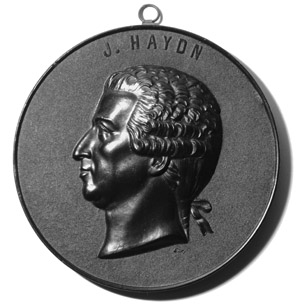

  A decorative medal from early 20th century France, moulded from shellac compound, the same used for phonograph records of the period.

• 1870's
• Celluloid

  1869-70

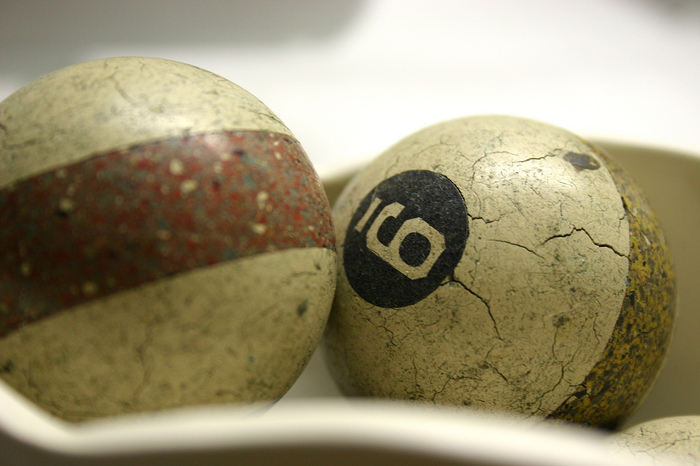

  John Wesley Hyatt (USA) patented Celluloid - a camphor modified cellulose nitrate - a readily mouldable material for billiard balls, spectacle frames, photographic film, etc.





• 1892
• Cellulose Acetate

  3/03/2014

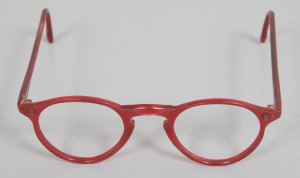

  Cross, Bevan and Beadle patent cellulose acetate regenerated from chemically treated wood pulp for fibres and threads.

  This was followed by Cross and Bevan producing tough, fire resistant thermoplastic products many colours for applications spanning some 50 years.



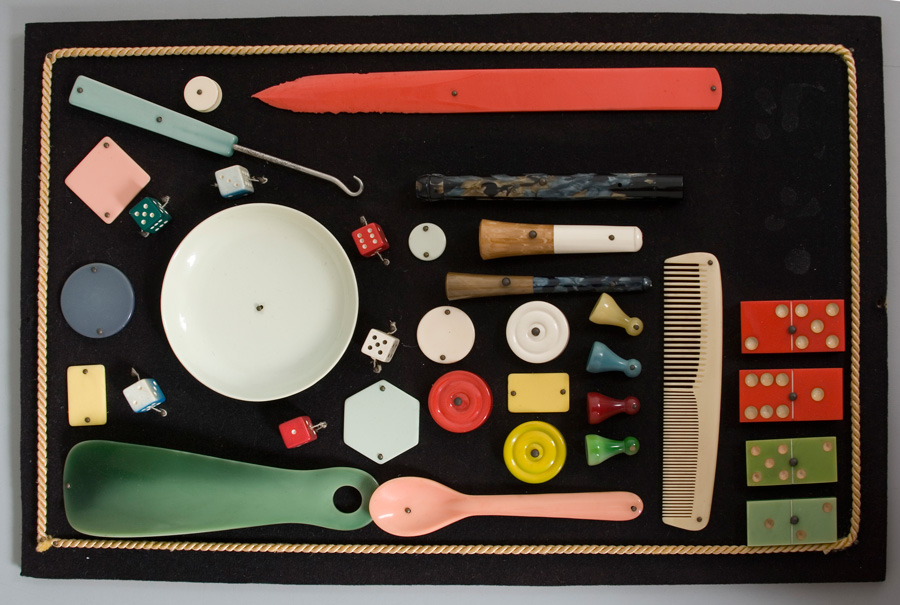

• 1900's
• Cellophane

  1905

  J. Edwin Brandenberger (USA) invented cellophane used in thin films for fabrics and packaging providing major applications for many years.

• Synthetic Plastics

  1900-1910

  1899 Phenol-formaldehyde resins replace ebonite for electrical insulation.

  1904 Phenol-formaldehyde lacquers for metal.

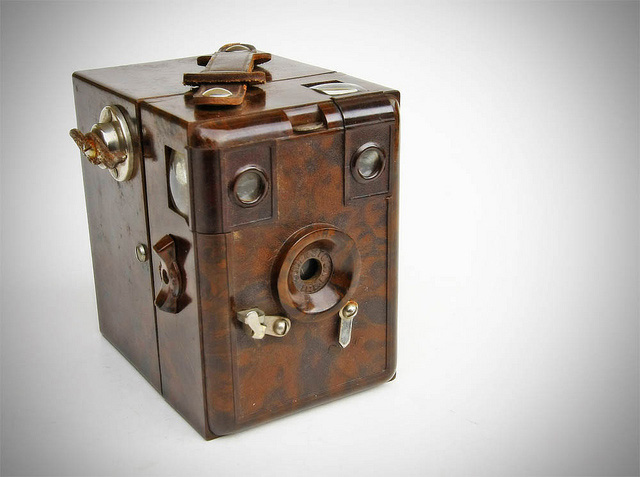

  1909 Leo Baekeland patents Bakelite, the first major thermoset material to replace wood, ivory, ebonite, etc.



• Synthetic Plastics

  1910-1920

  1910 Formica electrical insulation laminate by H. Faber and D O'Conor (USA) using p/f resin impregnated paper plies.

  1912 I. Ostromislensky (Russ.) patented the polymerisation of vinyl chloride to give unstable PVC polymer (unstable when not modified).

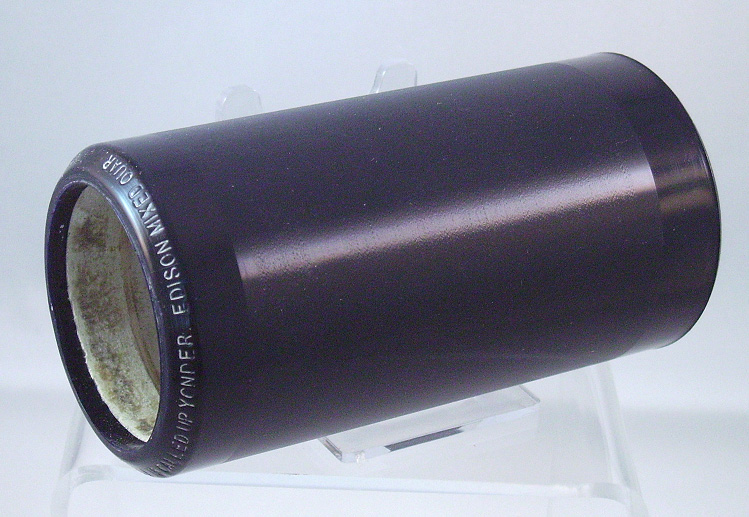

  Blue Amberol Records are made of blue celluoid around a plaster of paris core, and play for 4 minutes at 160 rpm. Their introduction led to a resurgence of sales of cylinder records.

  1913 Klatte produced polyvinyl acetate.

  1918 Hans Johns patented urea-formaldehyde resins.

• 1920
• Synthetic Plastics

  1920-1930

  1922 Herman Staudinger (Ger.) proposed long chain molecular structures for polymers and synthesised rubber.

  1924-28 Edmund Rossiter developed water-white transparent mouldings from thiourea-formaldehyde resins (marketed as Beetle resins from 1928).

  1926 The first truly successful commercial injection moulding machine was produced in 1926 by Eckert and Ziegler (German Patent 495362).

  1927 Otto Rohm (Ger.) developed poly (methyl methacrylate) clear plastic.

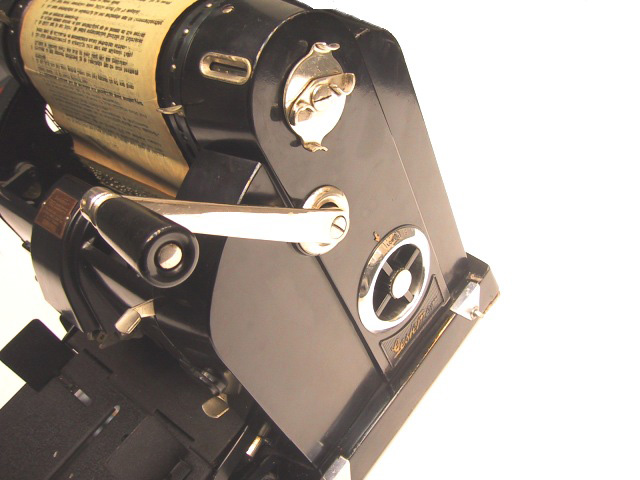

  1927: Gestetner duplicating machine featuring Bakelite casings designed by Raymond Loewy

• Synthetic Plastics

  1930-1940

  1927-37 Wallace Carothers headed major Du Pont team into 'designed' macromolecules, e.g. Neoprene rubber introduced in 1931 followed in 1934 with Nylon fibre (Nylon 66; Hill).

  1931 Heidrich (Germany) produced the first screw extruder specifically for thermoplastic processing.

  1938 Nylon 6 fibre (Schlack, I. G. Farben) commercially produced as Perlon.

  1932 ICI introduces PMMA - Perspex

  1933-40 Henkel patented melamine production for melamine formaldehyde resins. Developed by Ciba, American Cyanamid as basis for moulding powders (Melaware) and M-F surfaced laminates (Formica).



  1933 W. Semon produced stable PVC polymer (Goodrich).

  1933 Dow discovers polyvinylidene chloride (Saran).

  1933 First injection moulded polystyrene articles produced following earlier work by BASF and Dow Chemicals (produced in scale in 1937).

  1933 ICI discovers low density polythene, full commercial production in 1939.

  1933 Unsaturated polyester resins, developed and introduced commercially into the USA in 1941. (Cold-cured styrenated polyesters introduced in 1946 for fibre reinforced plastics.)

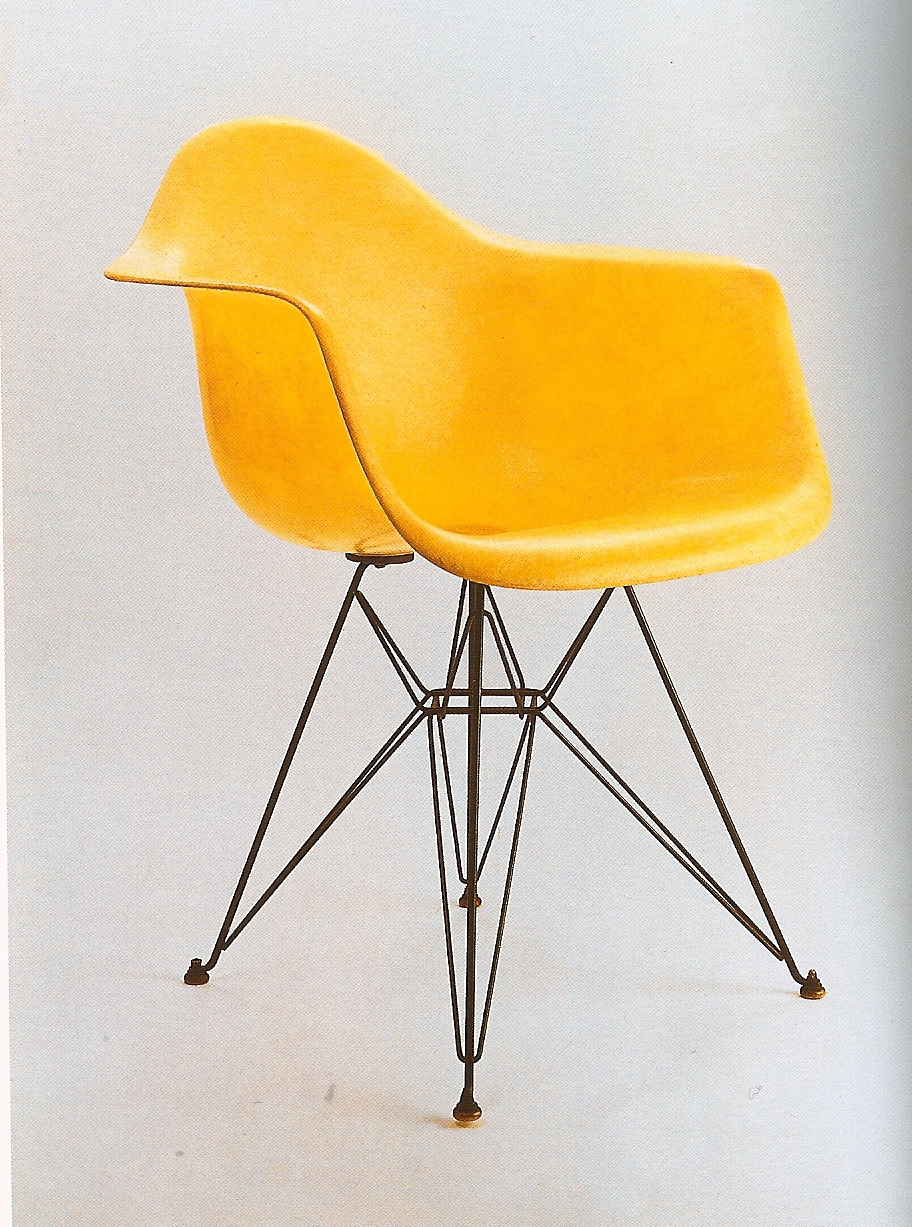

  Charles and Ray Eames, Eiffel Tower base chair, 1948-1950.

  1937 Hans Kellerer (Austria) introduced a fully automatic injection moulding machine capable of continuous operation.

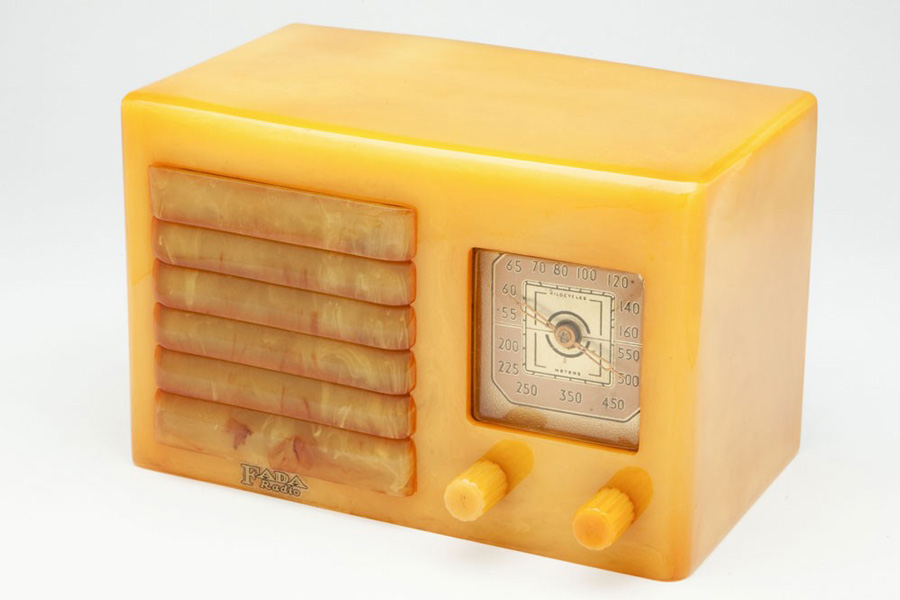

  Fada Baby radio - Catalin is transparent, near colorless, rather than opaque.

  1938 Du Pont discovers PTFE.

  1939 Bayer introduces polyurethane systems.

• 1939
• Space Age Materials

  1939-1950

  1939 Foundation epoxy resins. 1945 Ciba produced epoxy resins.

  1940 Du Pont introduced Polyacrylonitrile (PAN) polymer, an early engineering product.

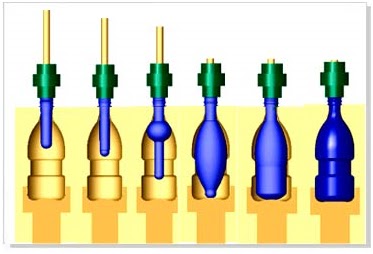

  1940 PET - poly(ethylene-terephthalate) synthesised by J. R. Whitfield and J. T. Dickson at Calico Printers Association. ICI Terylene fibres and Melinex films followed (also Dacron and Mylar from Du Pont). In 1977 oriented blow moulded drinks containers were launched based on PET polymers and other types, e.g. PBT - poly(butyl-terephthalate).



  1947 Formica melamine faced decorative p/f laminates were introduced to the UK.

  1957 Melmac Idealware by Russel Wright. A brand name of dinnerware molded from melamine resin, made by American Cyanamid, most popular in the 1940s through the 1960s.

• Space Age Materials

  1950-1960

  1953 Karl Ziegler with E. Holzkamp produced high molecular weight, low pressure poly(ethylene) using organo-metallic catalysts; a major step forward.

  1953 Bayer and General Electric independently produced polycarbonate pioneering engineering polymer.

  1954 Isotactic polypropylene discovered by Guilo Natta, Montecatini. ICI produced 'Propathene' used in high volumes for demanding domestic and engineering applications.

  1955 Du Pont patented EVA (ethylene-vinyl acetate copolymer) with the Elvax range launched in 1960.

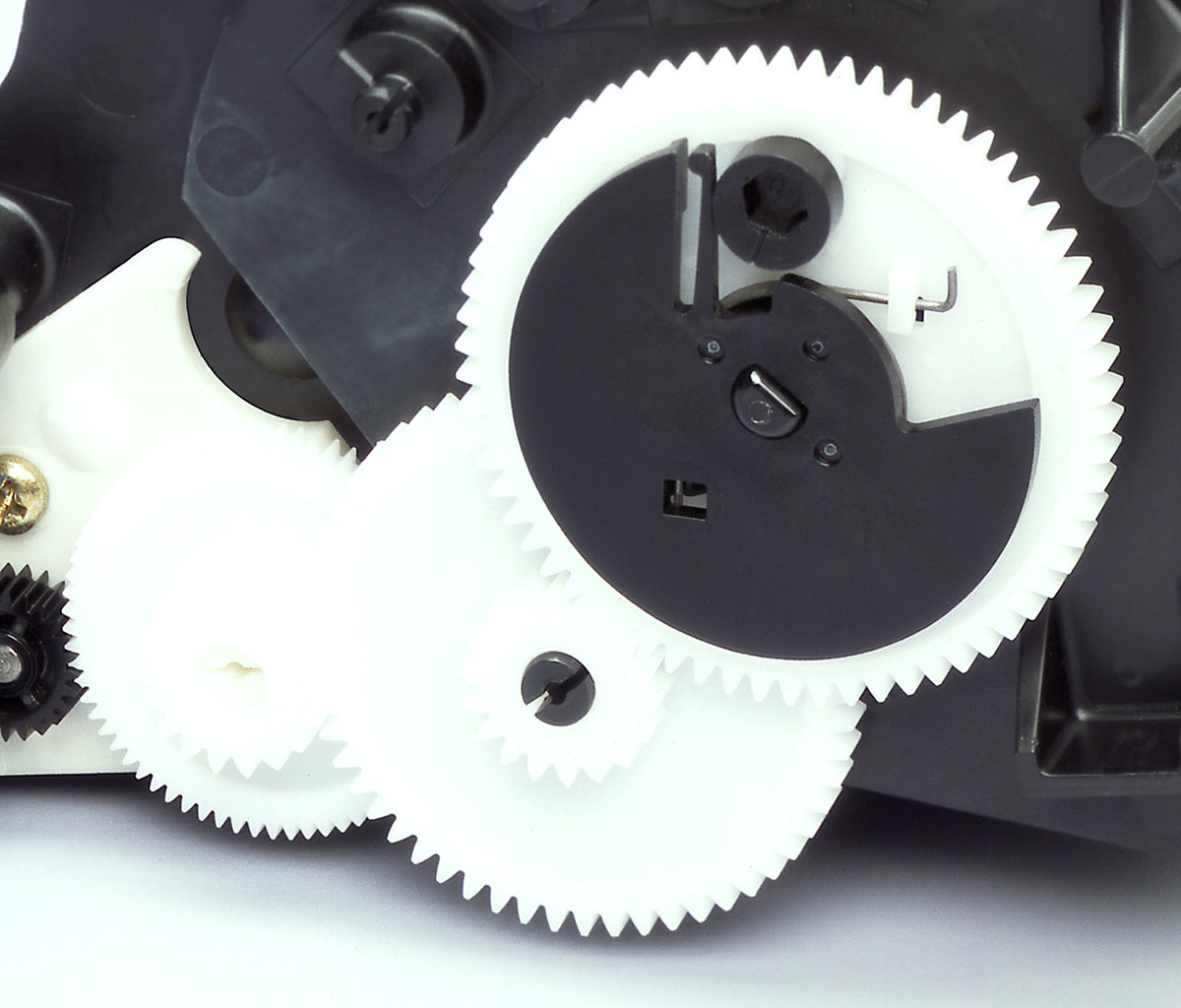

  1959 Du Pont launched Delrin - polyformaldehyde polymer (Delrin 100TL gear mouldings shown below). This proved to be a valuable light engineering polymer.



• 1960
• Space Age Materials

  1960-1970

  1961-62 Du Pont introduced polyimide films - Kapton - and varnishes and later foams for composite structures. The resins are capable of high insulation, fire resistant and mechanical properties.

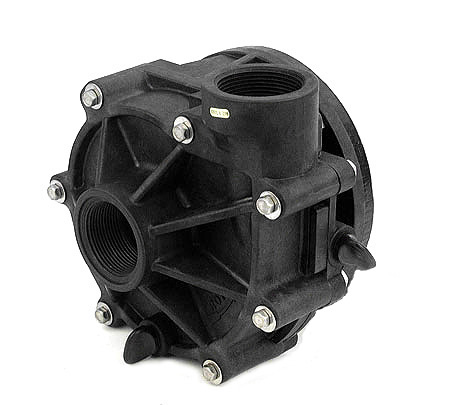

  1964 Polyphenylene oxide (PPO) polymers were patented by General Electric (USA) and introduced as the Noryl range in 1966. These were widely used as high performance engineering thermoplastics.



  1965 Union Carbide, 3M and ICI produced polysulphone thermoplastic engineering polymer.

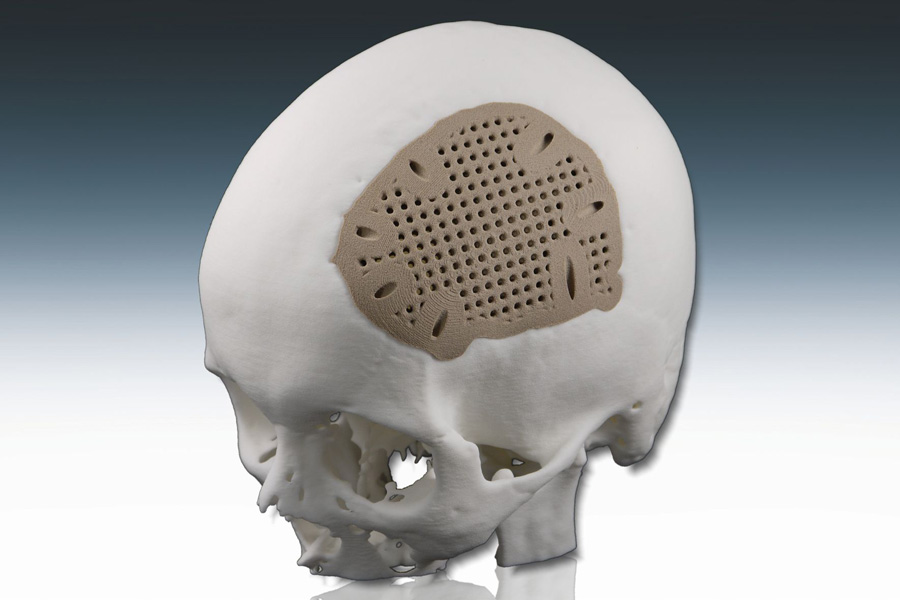

  1965 PEEK - Poly(ether.ether ketone) resistant chemical and engineering polymer produced by ICI.



  Courtesy www.sme.org

  1966 vinyl ester polymers (bisphenol A/acrylic variants) produced by Dow Chemical Co. as the Derakane series.

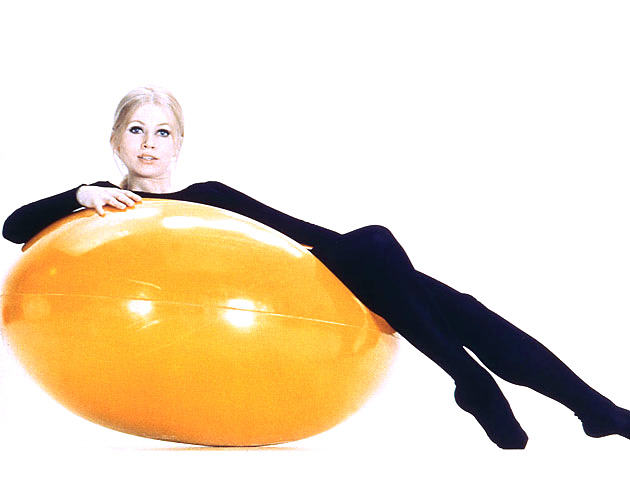

  Designed by Eero Aarnio in 1967, the "Pastilli Chair" is also known as the Gyro or Pastil chair.

  Carbon Fibre Dragonfly Drone - assisted by vinyl esters. Festo by way of Composites Today

• Further Reading

  1970's onward

  Resource The Plastiquarian

  The First Century of Plastics - Celluloid and its Sequel Morris Kaufman 1961; (Fundamental landmark publication.)

  Fibre Composite Hybrid Materials ed. N. L. Hancox; Applied Science Publishers, 1981. (High performance polymers, adhesives and reinforcements etailed for design and moulding of composites for demanding applications, e.g. prosthetics.)

• On the shoulders of these developments and greater understanding of control, structure, manufacture, design and test techniques has engendered a proliferation in space and electronic age applications.

Comparisons illustrated

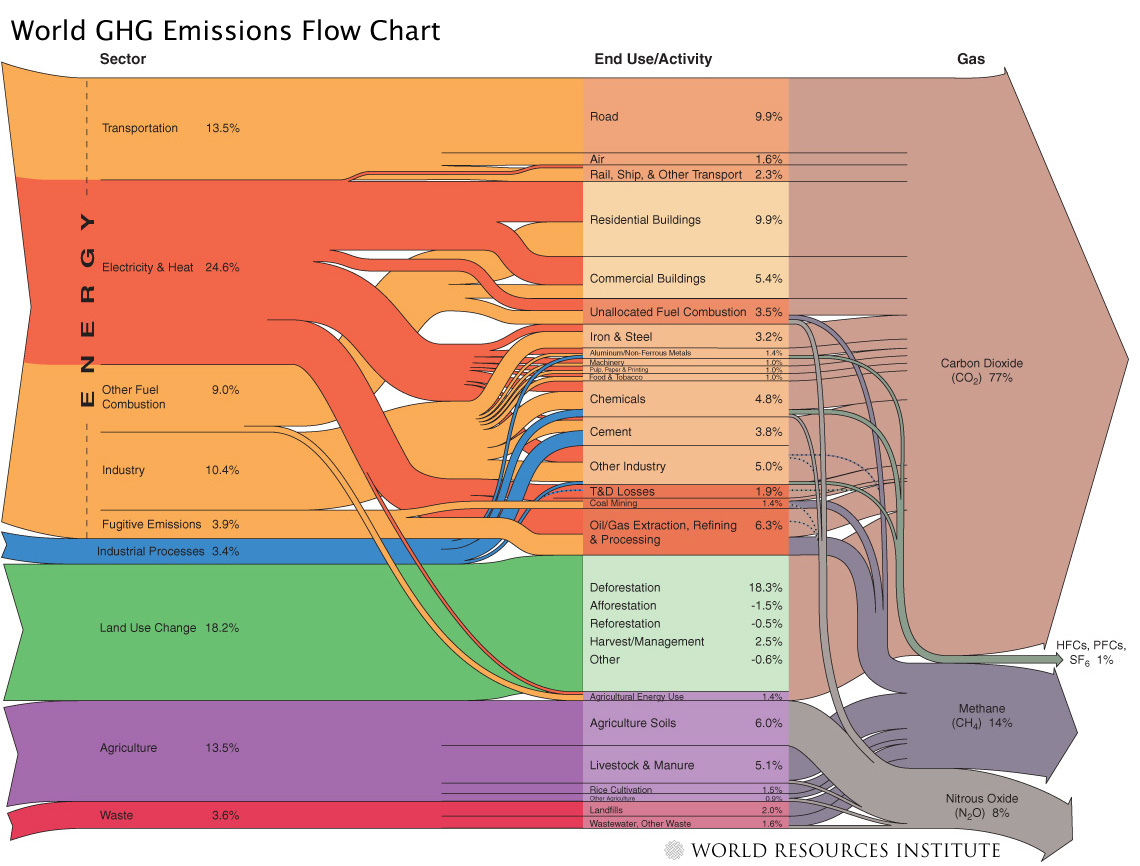

World Ressource Institute (WRI) illustrates the activity sectors from which of greenhouse gases (GHGs) originate, comparing this world flow chart with that of the USA.

'All data is for 2000 and given in CO2 equivalents with the GWP 100a weighting factors for methane, nitrous oxides, HFCs and PFCs from the IPCC 1996 report. The total quantity is an estimate of 41755 MtCO2 equivalent.'

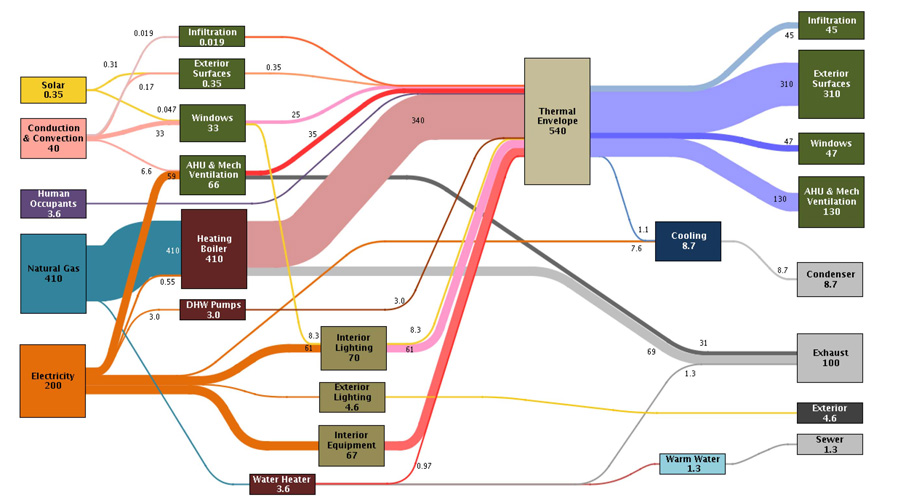

Sankey Diagrams

This article on ‘A Pilot for Measuring Energy Retrofits’ describes how researchers from the EEB Hub used an old navy building in Philadalphia to “determine detailed system performance”.

The result of that “inverse modelling” (i.e. measuring) approach are presented in Sankey diagrams and are used “to identify discrepancies in the predicted versus actual energy balance”.

4see

This short film introduces the 4see framework whose purpose is to explore future scenarios using data from the past. Foresight

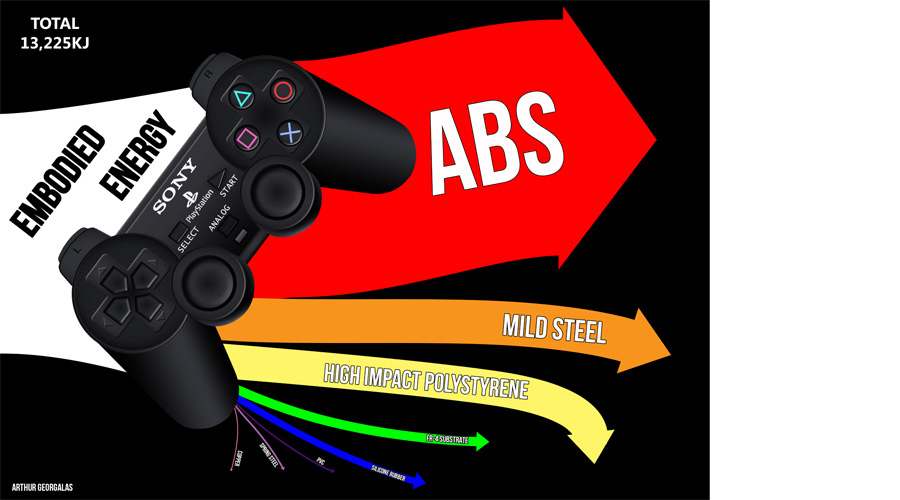

Student example

A simple example illustrating Sankey Diagram application.

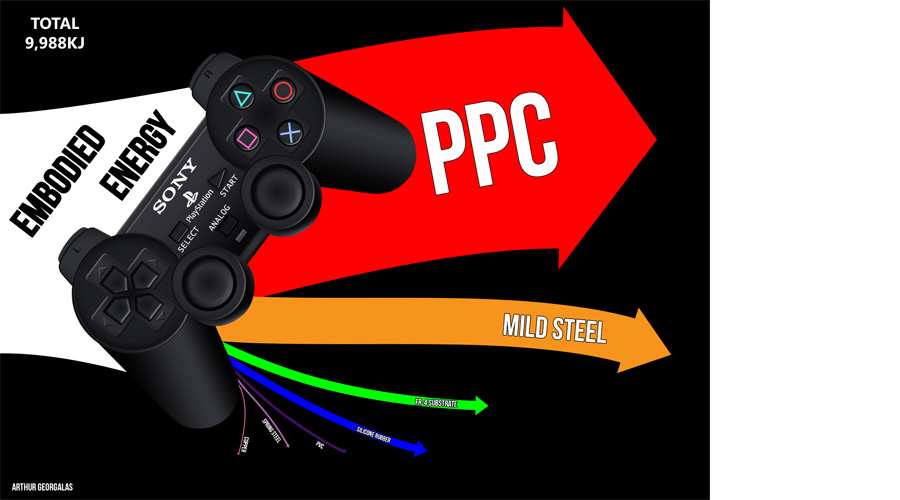

Student example

The modified product embodied energy.

Pathways

'Makers' consistently congregate and support one another's survival. The flow of energy, material, parts and artefacts can be mapped within these manufacturing precincts and beyond in the distribution phase.

A geographical map will act as a foundation for the following LCA mapping.

Download Plastics Presentation pdf
